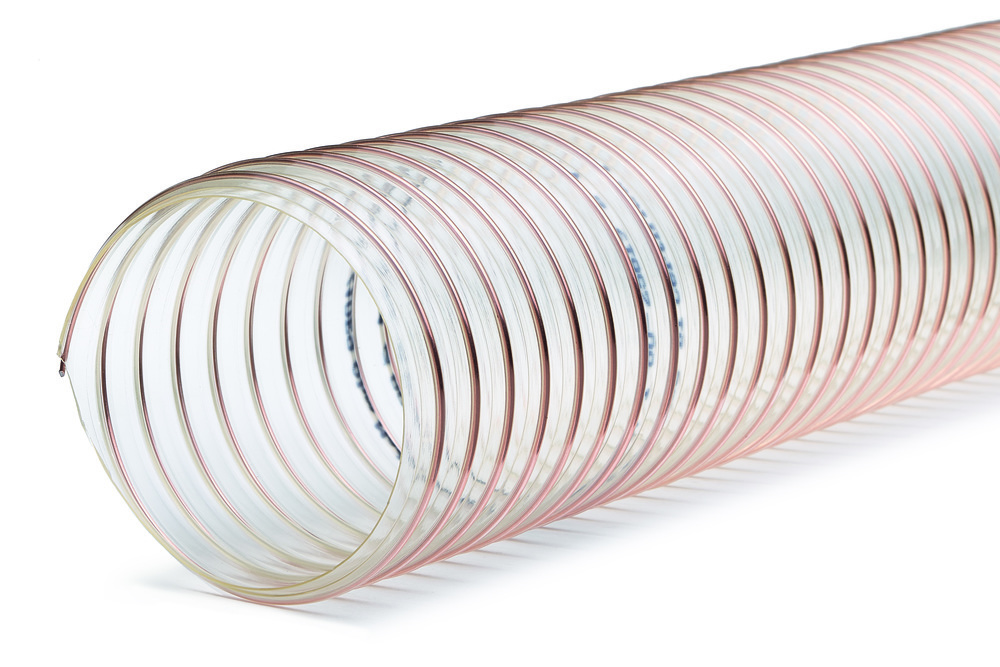

Flexibler Spiralschlauch aus Polyurethan, speziell für CNC-Maschinen, schwer entflammbar
| Inner Diameter (mm) | 80 - 500 |
|---|---|
| Wall Thickness (mm) | 0.6 |
| Bending Radius (mm) | 60 - 360 |
| Max. Operating Pressure (bar) | 0.05 - 0.7 |
| Vacuum Max. (bar) | 0.01 - 0.13 |
| Total Weight per Piece (kg) | 3.09 - 42.2 |
| Length (m) | 5 - 15 |
| Single Lengths (m) |
10 15 |
| Properties | excellent flexibility, good abrasion resistance, good oil & petrol resistance, hydrolysis- & microbe resistance, flame-retardant |
|---|---|
| Construction | TPU / Polyether-Polyurethane, clear, steel wire / spring steel wire / not coated / copper plated |
| Temperature | -40°C up to 100°C, short term up to 125°C |
Main usage |
|
|---|---|
| Fields of application | CNC processing, sawing & milling, wood dust extraction, extraction systems, automation technology & robotics |
| Sector | Wood & Timber, Air conditioning, Ventilation & Extraction |
Properties |
|
Technical data |
|
| Hose Construction | spiral hose / film hose |
| Execution | light weight |
| Material Type | plastic |
| Wall Material (Outer Layer) | TPU / Polyether-Polyurethane |
| Wall Material (Inner Layer) | TPU / Polyether-Polyurethane |
| Helix Material | steel wire / spring steel wire / not coated / copper plated |
| Number of Layers | single-layer |
| Hose Color Coverage | clear |
| Pitch | right hand thread |
Norms |
|
| Fire Protection Standard | flame-retardant according to DIN 4102 / B1 |
| Electrical Conductivity (Standard) | TRBS 2153 |
Hydrolysis Resistant
Microbe Resistant
Flame Retardant
Conductive
Abrasion Resistant
Dust
Solids
Variants 25
Temperature (°C) Max. Short-Term
Hose Construction
Inner Diameter (mm)
Wall Material (Inner Layer)
125
spiral hose / film hose
80
TPU / Polyether-Polyurethane
125
spiral hose / film hose
80
TPU / Polyether-Polyurethane
125
spiral hose / film hose
102
TPU / Polyether-Polyurethane
125
spiral hose / film hose
102
TPU / Polyether-Polyurethane
125
spiral hose / film hose
127
TPU / Polyether-Polyurethane
125
spiral hose / film hose
127
TPU / Polyether-Polyurethane
125
spiral hose / film hose
150
TPU / Polyether-Polyurethane
125
spiral hose / film hose
150
TPU / Polyether-Polyurethane
125
spiral hose / film hose
160
TPU / Polyether-Polyurethane
125
spiral hose / film hose
160
TPU / Polyether-Polyurethane
125
spiral hose / film hose
180
TPU / Polyether-Polyurethane
125
spiral hose / film hose
180
TPU / Polyether-Polyurethane
125
spiral hose / film hose
203
TPU / Polyether-Polyurethane
125
spiral hose / film hose
203
TPU / Polyether-Polyurethane
125
spiral hose / film hose
225
TPU / Polyether-Polyurethane
125
spiral hose / film hose
225
TPU / Polyether-Polyurethane
125
spiral hose / film hose
254
TPU / Polyether-Polyurethane
125
spiral hose / film hose
254
TPU / Polyether-Polyurethane
125
spiral hose / film hose
280
TPU / Polyether-Polyurethane
125
spiral hose / film hose
305
TPU / Polyether-Polyurethane
125
spiral hose / film hose
315
TPU / Polyether-Polyurethane
125
spiral hose / film hose
356
TPU / Polyether-Polyurethane
125
spiral hose / film hose
400
TPU / Polyether-Polyurethane
125
spiral hose / film hose
457
TPU / Polyether-Polyurethane
125
spiral hose / film hose
500
TPU / Polyether-Polyurethane
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Price on Request
Amount
PU 0.6 CNC FLEXX
excellent flexibility, good abrasion resistance, good oil & petrol resistance, hydrolysis- & microbe resistance, flame-retardant
Hydrolysis Resistant
Microbe Resistant
Flame Retardant
Conductive
Abrasion Resistant
Dust
Solids
